G&P Stoner 63 TDC-7 Hop Up Assembly

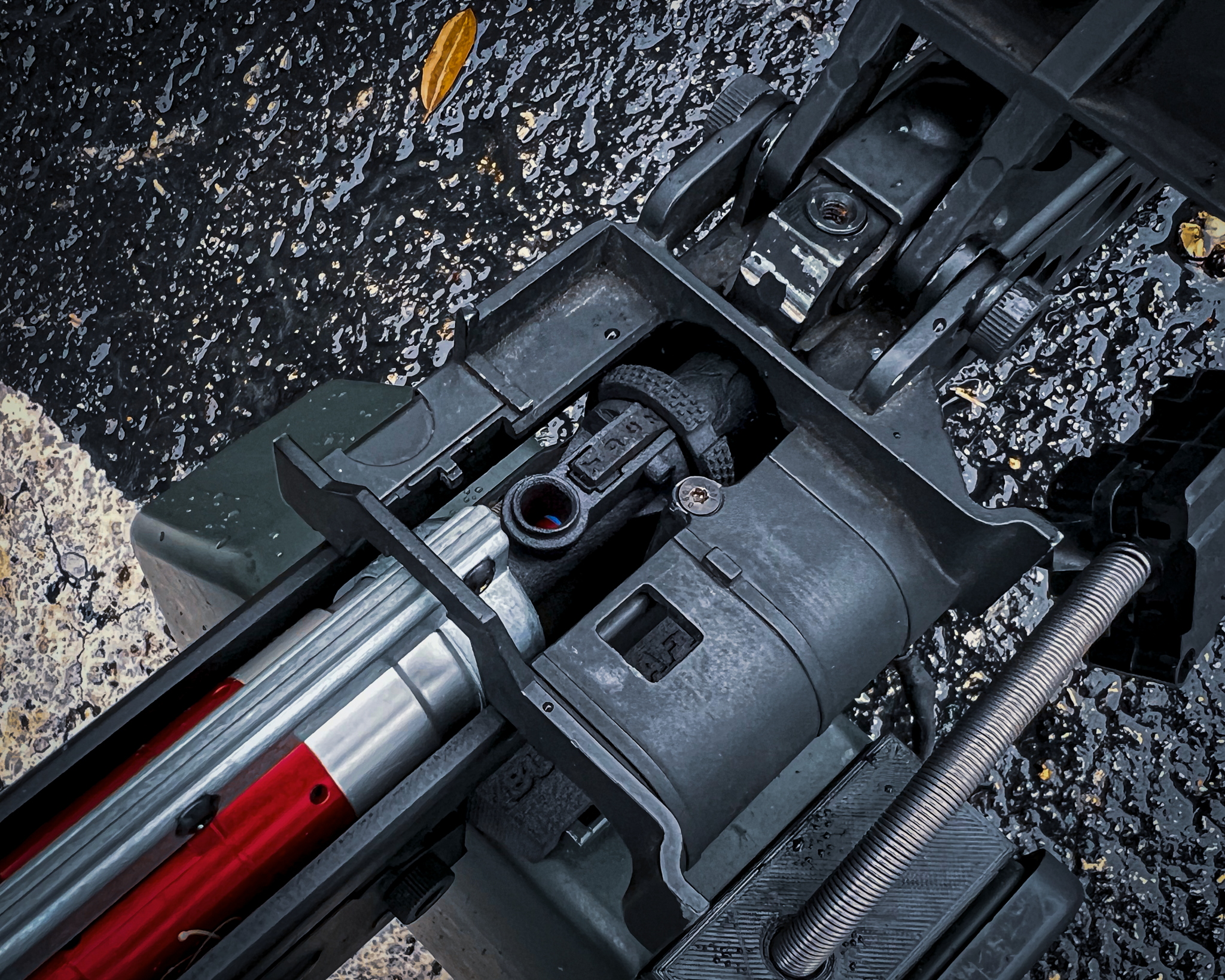

Replace the original hop-up chamber in your G&P Stoner 63 airsoft replica with the Bull Craft TDC-7 Hop-Up Assembly. Its Top Dead Center adjustment system applies centered pressure to the hop bucking, providing controlled, repeatable hop adjustment for properly tuned AEG and HPA builds.

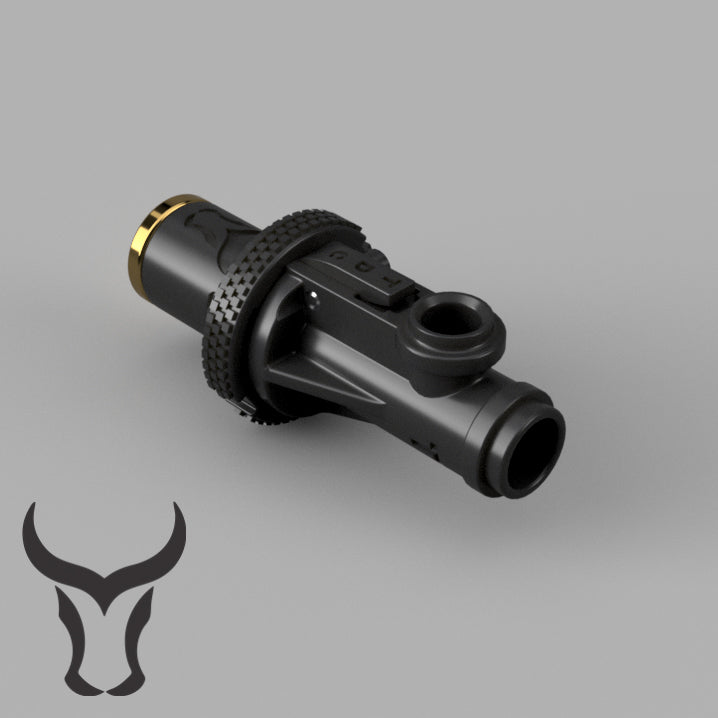

The TDC-7 is a complete, drop-in replacement manufactured from SLS-printed Nylon PA12 and finished in black. It accepts standard AEG-cut inner barrels and standard AEG hop buckings. The adjustment wheel, arm, arm pin, three different-size hop nubs, and wheel O-ring are included.

Features

• Complete replacement for the original G&P Stoner 63 hop-up chamber
• Top Dead Center hop adjustment
• Centered, repeatable pressure adjustment
• Compatible with standard AEG-cut inner barrels
• Compatible with standard AEG hop buckings
• Includes two different-size hop nubs for setup flexibility
• Works with properly configured AEG and HPA builds
• Drop-in installation with no drilling or permanent modification
• Manufactured from durable SLS-printed Nylon PA12
• Black finish
• Made in the USA

Nozzle Compatibility

• AEG builds: 19.6 mm nozzle
• HPA builds: HPA engine configured with a #18 nozzle

Important: Correct nozzle selection is required for proper fitment and air-seal performance. Confirm your nozzle configuration before installation.

Optional Hop-Up Support Bracket

The Bull Craft G&P Stoner 63 Hop-Up Support Bracket is available as an optional add-on. It is not required to install or operate the TDC-7 Hop-Up Assembly.

What’s Included

• One TDC-7 hop-up chamber
• Hop-adjustment wheel
• Hop arm
• Arm pin
• Three different-size hop nubs
• Adjustment-wheel O-ring

Not included: The inner barrel, hop bucking, optional support bracket, nozzle, airsoft replica, and other pictured components are not included unless separately selected or purchased.

Installation Video

Watch the G&P Stoner 63 TDC-7 Hop-Up installation and assembly video
