G&P Stoner 63 Thru-Wire Feed Block

G&P Stoner 63 Thru-Wire Feed Block

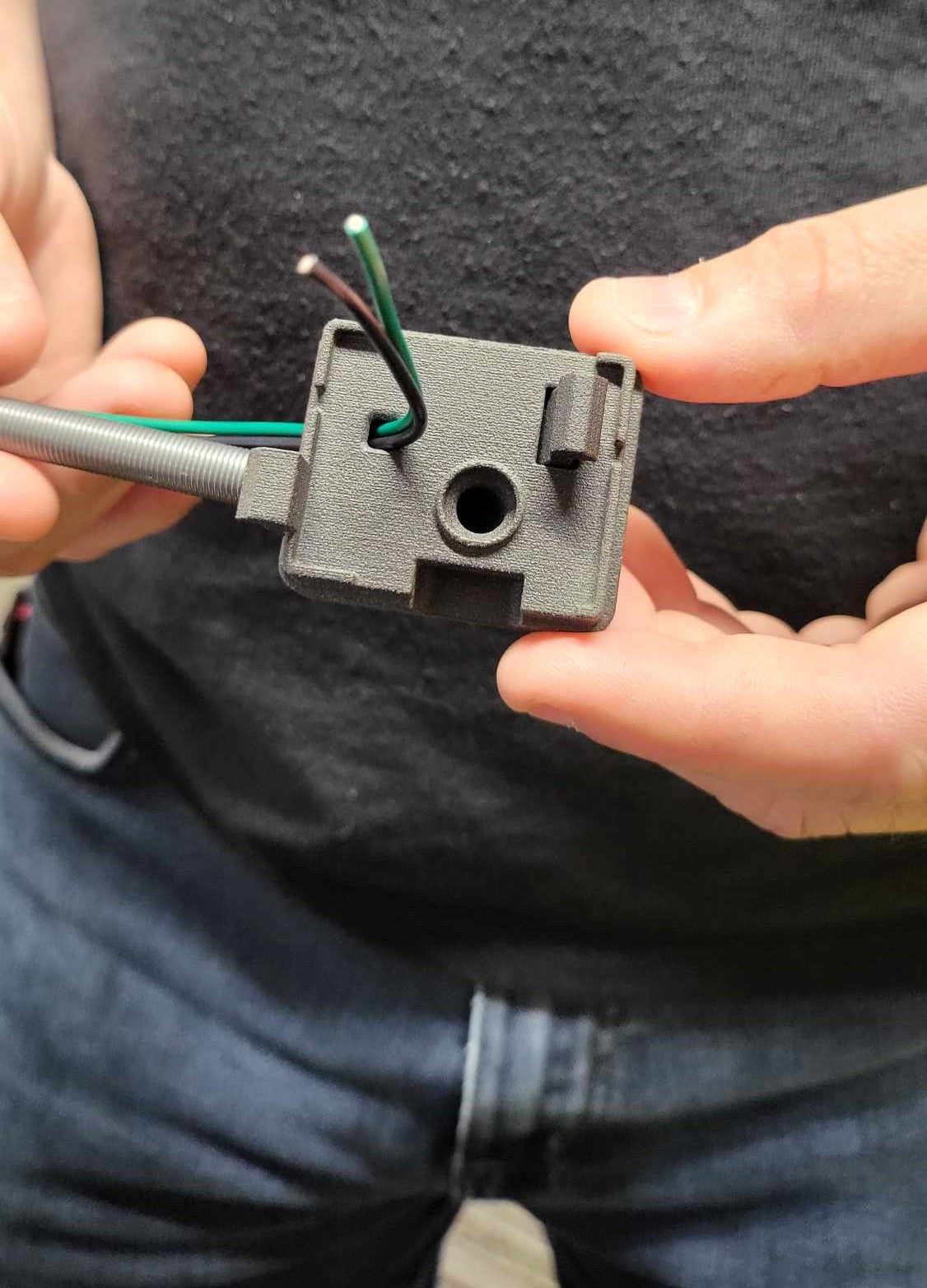

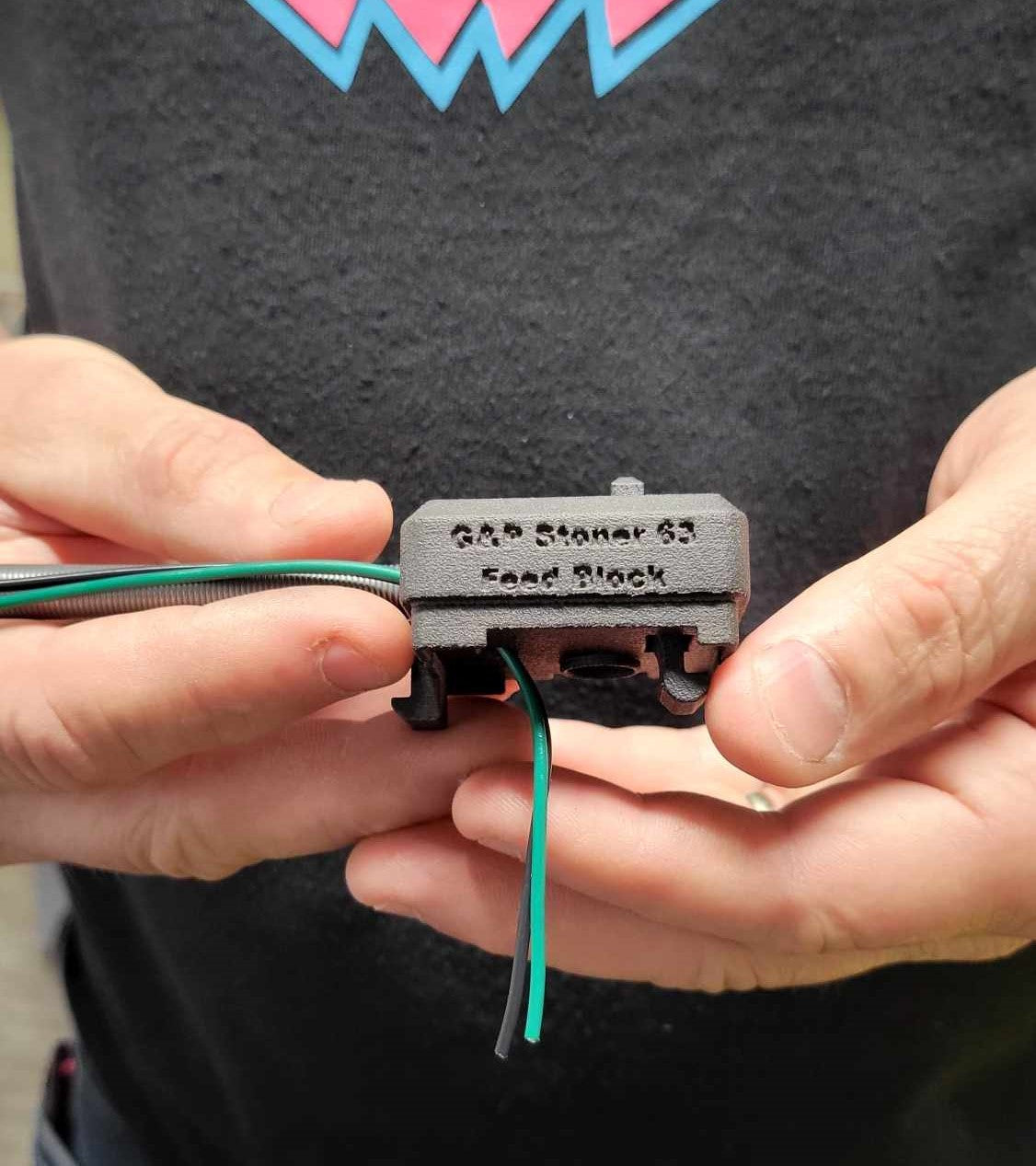

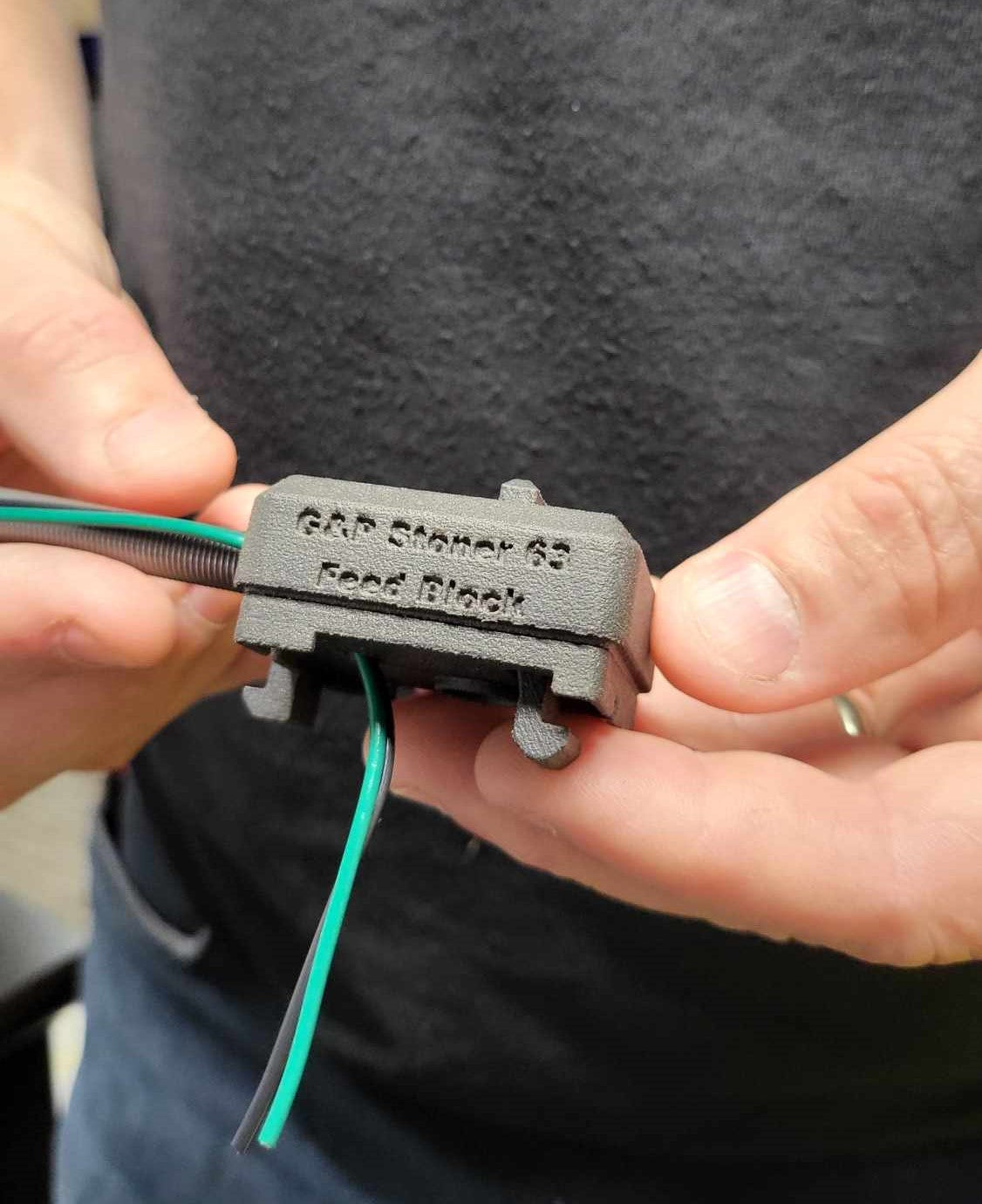

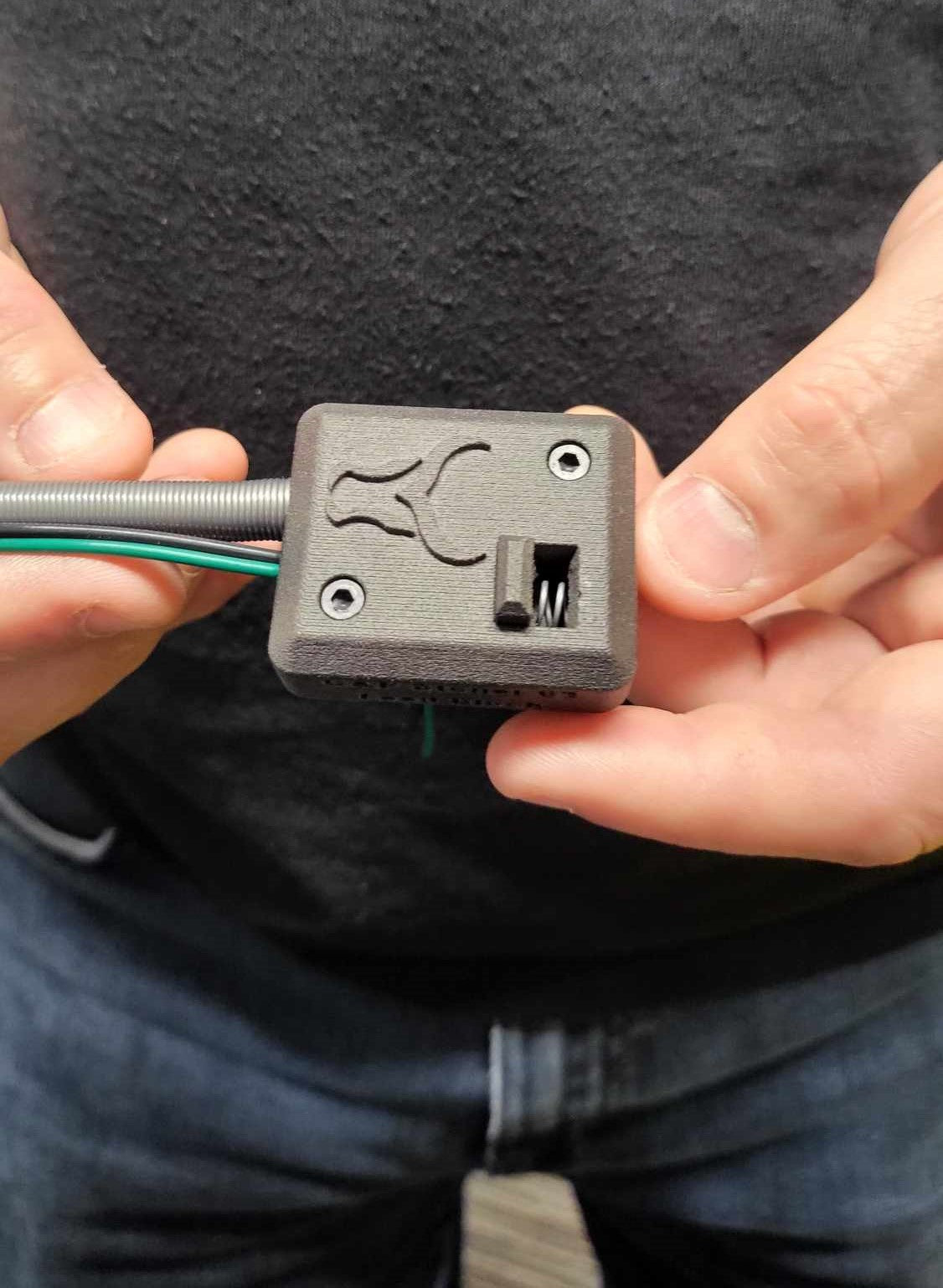

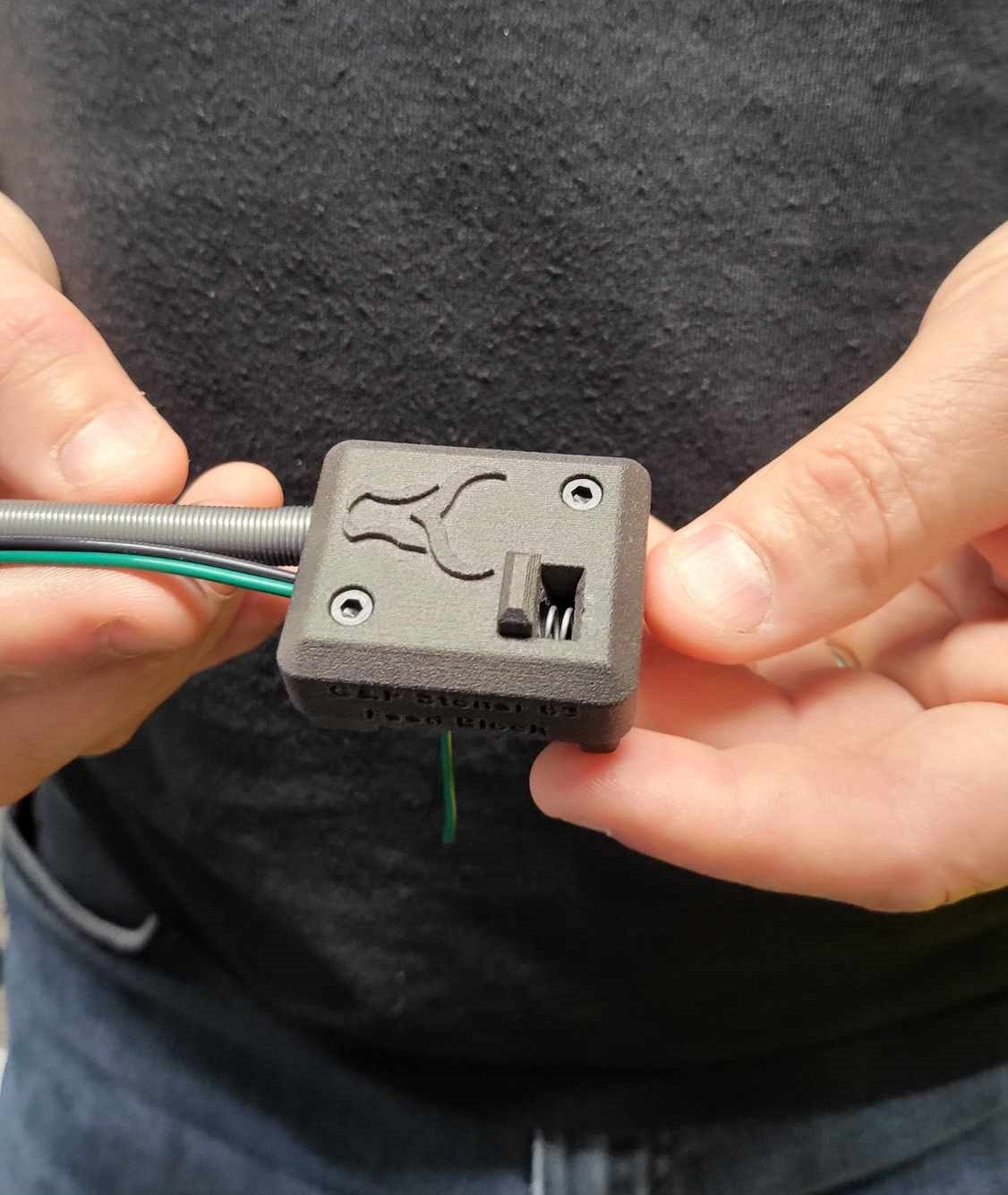

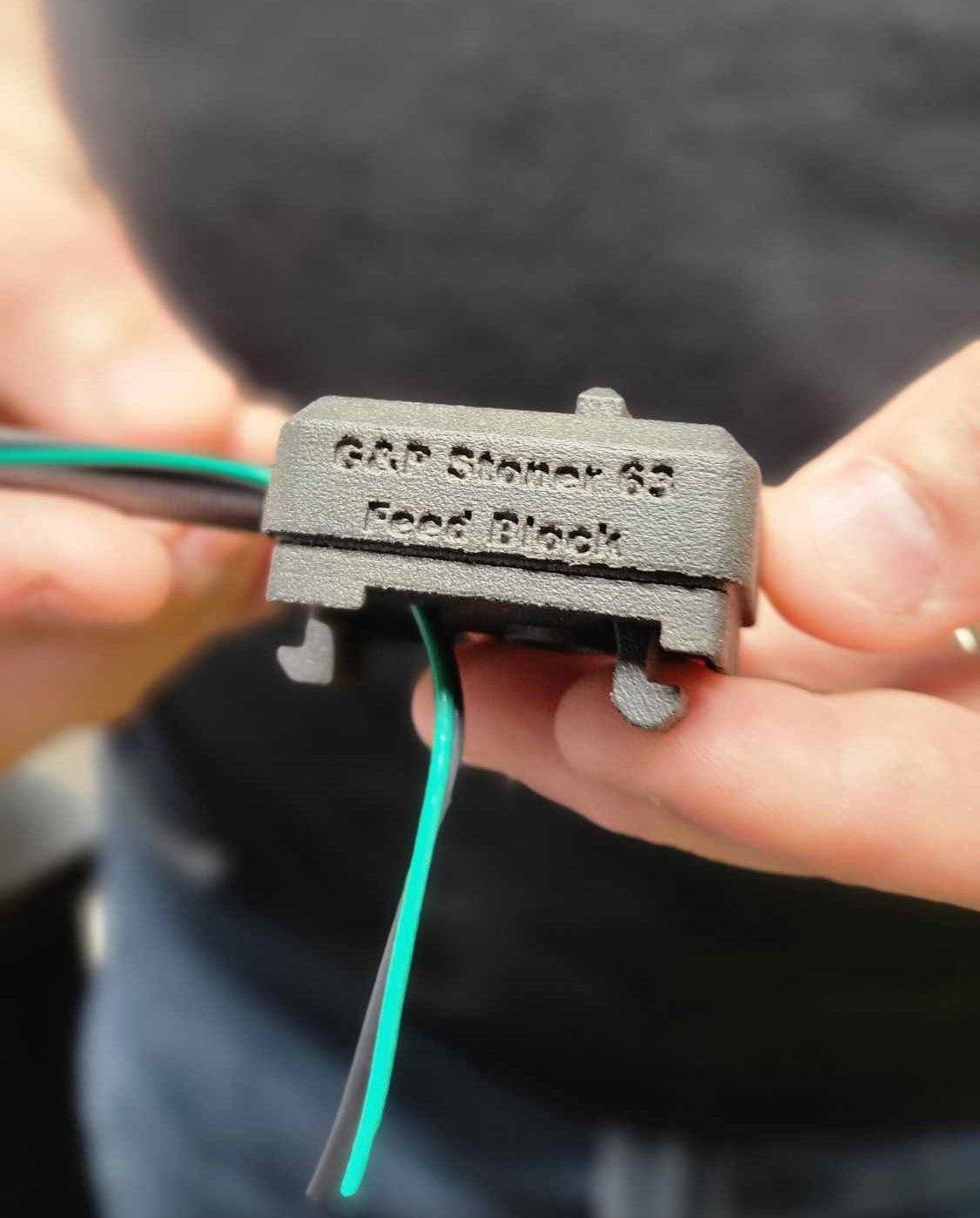

Replace the original G&P Stoner 63 feed block and pogo-pin magazine connection with the Bull Craft thru-wire feed block. This complete replacement provides a direct path for the magazine wiring while creating a more secure mechanical connection between the replica and box magazine.

Eliminating the spring-loaded pogo-pin contact points reduces a common source of intermittent electrical connection. The positive-locking design also improves retention compared with the loose fit that can develop with the original feed block.

The feed block is manufactured from lightweight SLS-printed Nylon PA12 and supplied in black.

Magazine Compatibility

The Bull Craft thru-wire feed block works with:

• The original G&P Stoner 63 box magazine
• The Bull Craft Stoner 63-to-M249 box-magazine adapter
• Compatible externally fed M249 airsoft box magazines used with the Bull Craft adapter
• Bull Craft magazine inserts that use the appropriate external feed arrangement

Important: This feed block does not mechanically convert an M249 magazine to fit the Stoner 63. The separate Bull Craft M249 box-magazine adapter is required when mounting an M249 magazine.

Shop the G&P Stoner 63-to-M249 Box Magazine Adapter

Features

• Complete replacement for the original G&P Stoner 63 feed block
• Direct thru-wire feed design
• Eliminates the OEM pogo-pin electrical interface
• Positive-locking magazine connection
• Compatible with the original G&P box magazine
• Compatible with the Bull Craft M249 box-magazine adapter
• No cutting or soldering required
• Lightweight SLS-printed Nylon PA12 construction
• Black finish
• Designed and manufactured in Florida, USA

Installation

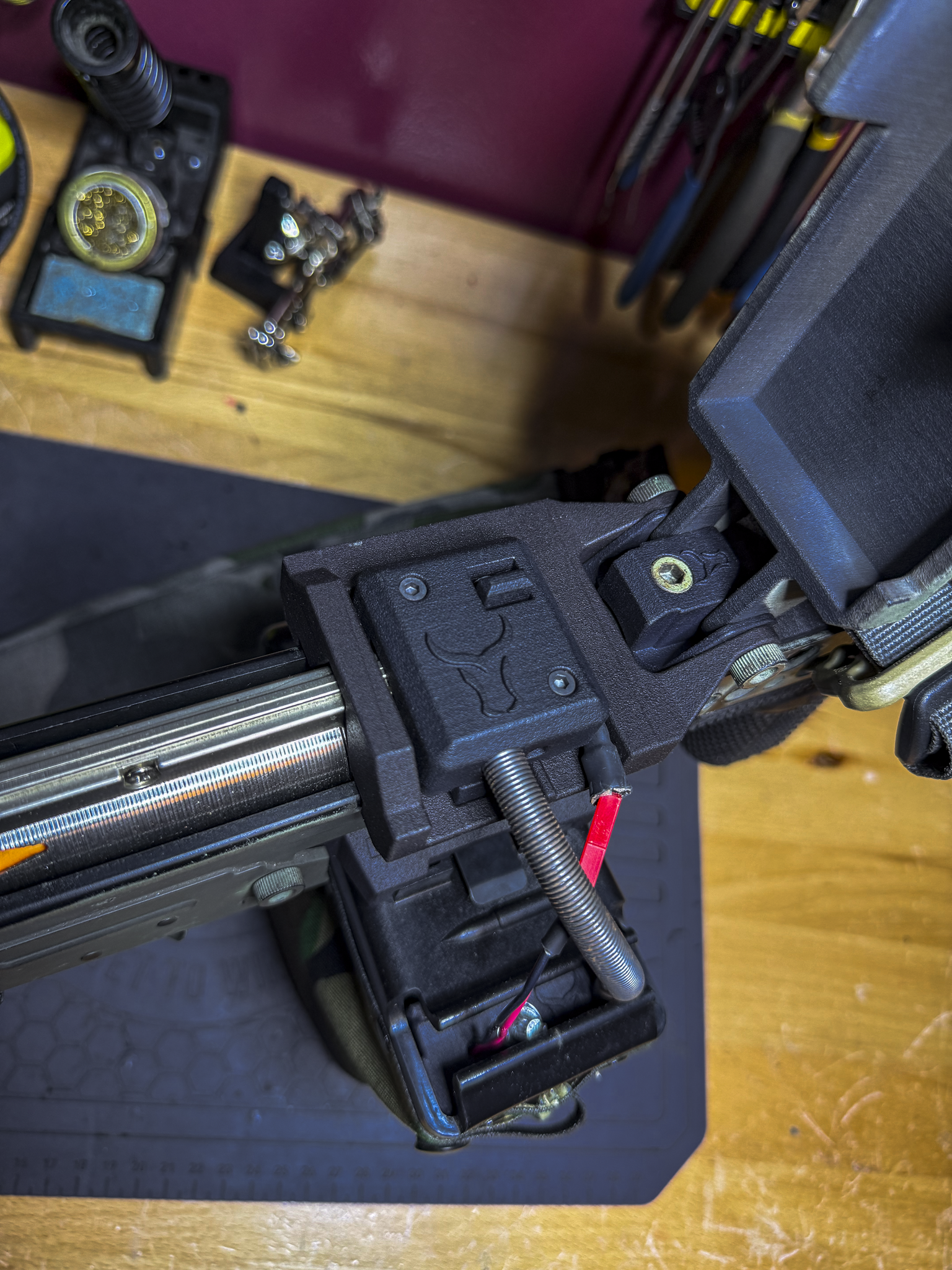

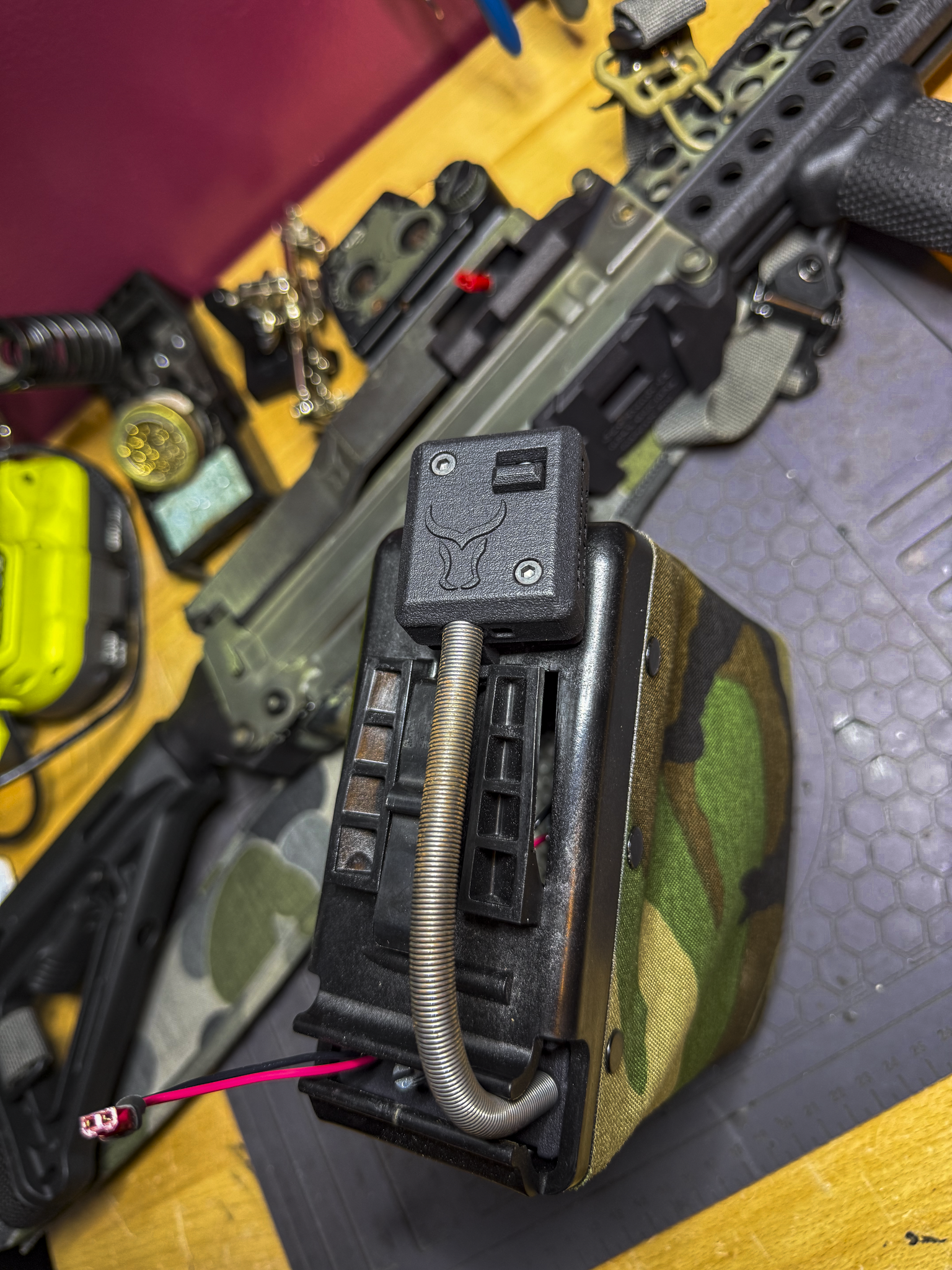

This product completely replaces the original G&P Stoner 63 feed block. During installation, the existing wiring is routed through the Bull Craft feed block to create the direct thru-wire connection.

1. Disconnect the replica’s battery and magazine.
2. Remove the original Stoner 63 feed block.
3. Route the existing wiring through the Bull Craft thru-wire feed block.
4. Install the replacement feed block in the original mounting location.
5. Reconnect the compatible box magazine.
6. Confirm that the feed block locks securely and that the wiring moves freely without being pinched.
7. Test magazine feeding before field use.

Professional installation is recommended if you are unfamiliar with the G&P Stoner 63 magazine and electrical system.

What’s Included

• One Bull Craft G&P Stoner 63 thru-wire feed block in black

What’s Not Included

• Electrical wires or connectors
• Original G&P Stoner 63 box magazine
• M249 box magazine
• Stoner 63-to-M249 box-magazine adapter
• External feed spring or feed tube
• Magazine insert or winding mechanism
• G&P Stoner 63 airsoft replica
